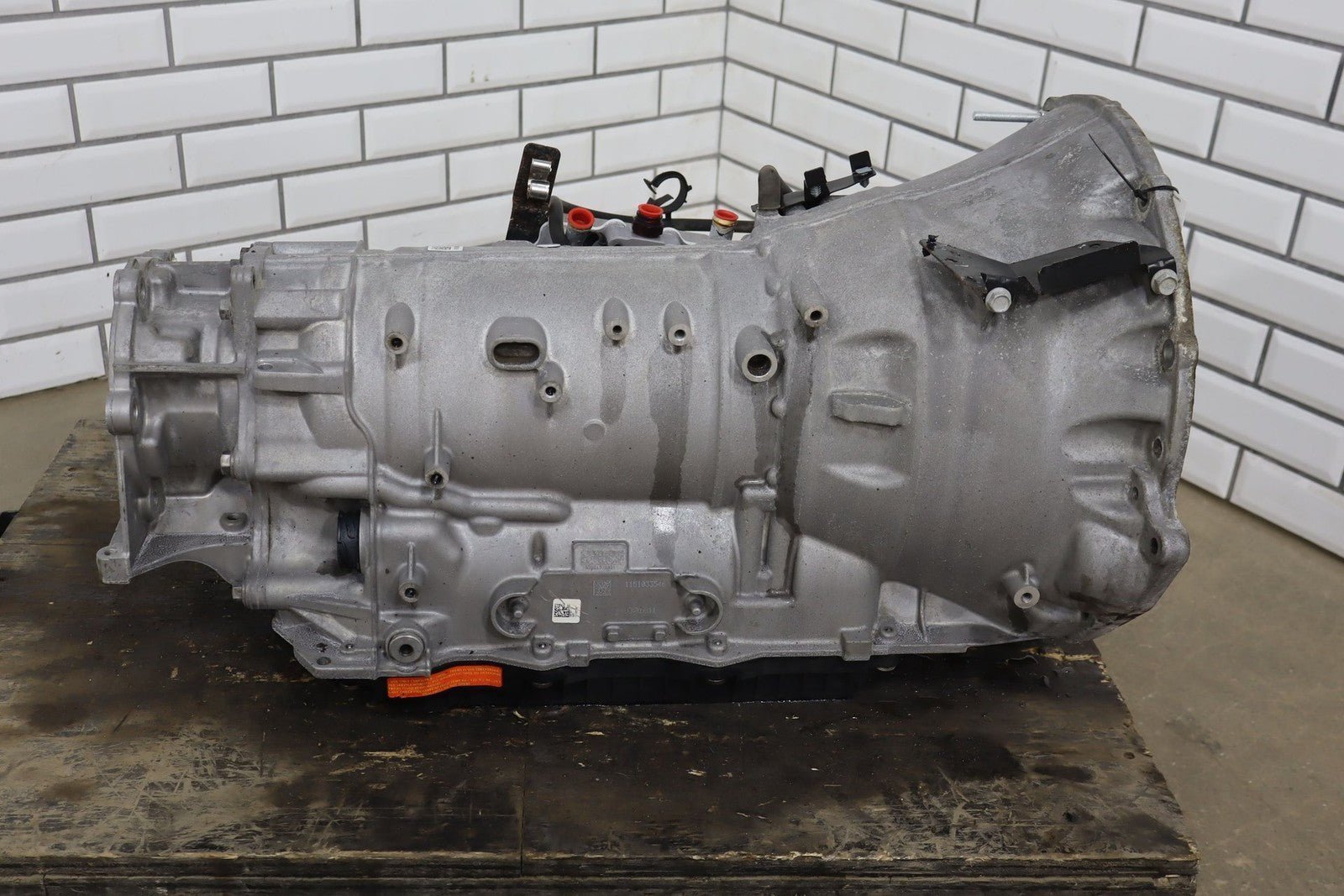

Source and Replace a 4th Gen Ram Transmission Safely
You can source and replace a 4th Gen Ram transmission by first confirming the exact unit via your VIN and door placard, evaluating replacement options by cost and warranty, then following a precise removal and install sequence that includes flushing the cooler, using a transmission jack, and torquing hardware to spec. Expect used units to be most affordable and rebuilt or new units to offer stronger assurances with higher cost.
This guide is built for Ram owners starting a repair. You will learn the fastest ways to identify your transmission, how to compare used, rebuilt, and new replacements with real cost ranges, and the critical steps that prevent early failure. We will call out the exact torque specs cited in professional references, plus post-install TCM relearning and road-test checks that verify a solid swap.
Key Takeaways
VIN and TR code first
Confirm the exact transmission via the Mopar VIN decoder or the door placard TR code to avoid misorders.
Budget accurately
Used $800–$2,500. Rebuilt $4,000–$7,000. New $12,995–$15,000+. Know your tier before you shop.
Safety and longevity
Use a $100–$300 transmission jack and flush cooler lines with a $12–$15 kit before install. Skipping either step risks early failure.
4th Gen Ram Transmission Overview and Reasons for Replacement
Fourth-generation Ram trucks span the 2009 to 2018 model years. Common transmissions on these platforms include the 68RFE paired with the 6.7L Cummins, the heavy-duty Aisin AS69RC, and the G56 6-speed manual, with the 48RE often cited for performance swap projects. If your truck is slipping, shifting harshly or late, making grinding or whining noises, or showing burnt fluid and leaks, you are likely facing internal wear that points to replacement rather than repair.
Choose replacement when contamination or metal shavings are present, since catastrophic internal damage is rarely economical to rebuild. Used, rebuilt, or new units each carry different costs and assurances that you can weigh against your truck's use case and budget.
Identifying the Correct 4th Gen Ram Transmission
Start with your 17-character VIN. Use the official Mopar VIN decoder to return definitive drivetrain details, including the transmission code; this is the fastest way to avoid ordering the wrong unit. Next, open the driver door and read the placard. The TR code on that label maps to the specific transmission the truck was built with.
If you need a visual cross-check, compare the oil pan shape and bolt pattern using a trusted identification guide. The 66RFE and 68RFE look similar but differ internally, and the Aisin AS69RC has a distinct pan profile; a pan-shape check helps confirm what the paperwork says.
Match any replacement to your exact engine, drivetrain, and control strategy. Minor part-number differences can affect connectors, valve body calibrations, or bellhousing patterns, so confirm compatibility before you buy using VIN-supported listings and seller documentation.
When shopping, keep your VIN handy and ask the seller to confirm the transmission's ID tag and any included programming notes. This ties the mechanical fit to the electronic strategy and reduces surprises during installation.
Options for Sourcing a Replacement Transmission
You have three primary choices. Used transmissions are the most affordable at roughly $800 to $2,500, but they carry unknown histories and contamination risk that can jeopardize a fresh install. Rebuilt or remanufactured units generally cost $4,000 to $7,000 and, when maintained, often run 100,000 to 200,000 miles. New specialty units commonly start around $12,995 and can exceed $15,000, aligning with premium warranties and zero wear history.
Where to buy varies by your tolerance for proof and support. Reputable online retailers of premium pre-owned components offer professionally inspected, cleaned, and video-documented units, often with photos and clear condition reporting. Our family-owned team, established in 1957, specializes in enthusiast-grade, OEM components and provides:
- 30-day parts warranty
- Careful packaging for secure shipping
- Name Your Own Price option on select listings
- 4.8 out of 5 rating across 511+ verified reviews
- Frequent notes about near-new condition and fast shipping
Questions to ask any seller include: proof of testing or video documentation, exact transmission ID code and mileage when known, warranty terms, return and core procedures, and required installation steps to keep the warranty valid. Some suppliers publish flexible core return policies, such as 120-day windows, which can simplify logistics for DIYers.
Cost snapshot
| Type | Typical Cost | Notes |
|---|---|---|
| Used | $800–$2,500 | Lowest upfront cost; verify testing and cleanliness |
| Rebuilt / Reman | $4,000–$7,000 | Often 100k–200k miles with care; shop warranty varies |
| New specialty | $12,995–$15,000+ | Highest assurance; premium warranty tiers |
Tools and Preparation Needed Before a Transmission Swap
Plan for a safe, well-lit workspace with level ground, wheel chocks, and jack stands. Never work under a vehicle supported only by a floor jack. Use a purpose-built transmission jack for controlled lowering and installation; quality units typically run $100 to $300 and improve both safety and alignment accuracy.
- Torque wrench
- Metric and SAE socket sets
- E-torx or specialty bits (as needed)
- Transmission cooler line disconnect tools
- Pry bars
- Fluid transfer pump
Preparation steps include disconnecting the negative battery cable, safely lifting and supporting the truck, allowing the transmission to warm slightly so fluid drains more completely, then draining the pan and removing the driveshaft and starter as needed for access.
- Confirm transmission ID by VIN or TR code and verify part compatibility.
- Acquire fresh ATF that meets your unit's spec, such as Mopar ATF+4 for 68RFE applications.
- Have a cooler line flush kit on hand; kits often cost about $12 to $15.
How to Remove and Replace the 4th Gen Ram Transmission: Step-by-Step
Work slowly, keep hardware organized, and follow torque specs. Small mistakes, especially skipped cooler flushing or over-torquing bolts, can destroy a fresh unit prematurely.
- 1) Safely raise and secure the vehicle Chock the wheels, disconnect the negative battery cable, and lift the truck high enough for transmission jack clearance. Support with jack stands at rated points; never rely on a floor jack alone.
- 2) Disconnect driveshaft, linkages, and electrical Mark the driveshaft orientation. Remove the driveshaft and, if equipped, apply threadlocker and note that center support bearing bolts will later be torqued to 40 ft-lbs on reassembly. Unplug all harnesses, sensors, and solenoids; disconnect shift linkages and cooler lines using the correct disconnect tools.
- 3) Access converter hardware and bellhousing bolts Remove the inspection cover, then rotate the engine to access torque converter bolts. On install these fasteners must be torqued between 30 and 50 ft-lbs, check your specific unit's spec within that range. The transmission mates to the engine with nine specific bolts; note size and position for correct reassembly.
- 4) Support and remove the transmission Position the transmission jack and secure the case with chains. Slightly relieve load from the crossmember, then remove crossmember bolts. Separate the bellhousing from the engine evenly to avoid binding. Lower the transmission slowly, watching wiring and cooler lines.
- 5) Inspect related components and flush the cooler Inspect the torque converter hub, input shaft splines, flexplate, rear main seal, and dowel alignment. Before connecting any lines, flush the transmission cooler and lines; dedicated kits cost about $12 to $15 and help remove abrasive debris that can destroy clutches during the first miles.
- 6) Install the replacement transmission Verify the torque converter is fully seated with correct engagement. Raise the transmission carefully, align on the dowels, and hand start all bellhousing bolts. Snug in a crisscross pattern to protect the aluminum case threads before final torque. Reinstall converter bolts to 30–50 ft-lbs, again confirming the correct value for your unit. Refit the crossmember and mounts.
- 7) Reconnect components and fill fluids Reconnect harnesses, linkages, and cooler lines. Reinstall the driveshaft; torque the center support bearing bolts to 40 ft-lbs where applicable. If you serviced the pan, install a new gasket and torque pan bolts evenly to about 12 ft-lbs in a spiral pattern from the center. Fill with the correct fluid, for example ATF+4 for 68RFE applications per manufacturer spec references.
Post-Installation Checks and Procedures
Start the engine with the truck still on stands. Cycle through gears with your foot on the brake to prime circuits, then check for leaks at the pan, lines, and cooler. Confirm fluid level as the transmission warms to operating temperature; recheck after the first short drive.
Modern transmissions often require a TCM relearn. This usually means a series of light throttle launches and steady-state cruises so the module can adapt pressures and shift timing. Plan a road test that includes several smooth accelerations from a stop, moderate throttle upshifts, and a brief highway segment, all while monitoring for flare, slip, or harsh engagement.
- Harsh or delayed shifts: verify fluid level and temperature, confirm all connectors are fully seated.
- Immediate shudder or early failure: suspect cooler contamination; reflush lines and inspect for debris.
- Drips at the pan: retorque to about 12 ft-lbs in a star or spiral pattern and confirm gasket seating.
Frequently Asked Questions About 4th Gen Ram Transmissions
How much will this cost?
Used transmissions often run $800 to $2,500, rebuilt units average $4,000 to $7,000, and new specialty builds commonly fall between $12,995 and $15,000+. With professional labor, a rebuilt transmission replacement typically totals $5,892 to $6,402.
How long does the swap take?
Labor hours vary widely by equipment, experience, and rust level. Plan for a complex, multi-step job that requires careful alignment and torquing.
Which transmissions are interchangeable?
The 66RFE and 68RFE share heritage but are not directly swappable due to internal and calibration differences. Many performance builders consider a 48RE swap for specific high-horsepower goals, though it involves custom work.
Should a beginner attempt this?
Not recommended. You need a transmission jack, torque tools, and strict adherence to steps like cooler flushing and bellhousing alignment. Skipping these steps risks immediate failure.
Will a used transmission void my warranty?
Policies differ and the research does not specify exact terms. Ask your seller and review any remaining vehicle coverage before proceeding.
A note on safety and cost control
A quality transmission jack, typically $100 to $300, lowers risk and helps you avoid case damage during install. Flushing the cooler with a $12 to $15 kit can prevent debris-related failure within the first 50 to 100 miles.
Where Can You Find Additional Support?
For peer-to-peer troubleshooting and build threads, explore RamForum.com and CumminsForum.com. When you want proof-documented components and expert fitment guidance, work with professional online retailers that provide VIN-backed compatibility checks, high-resolution photos, and test-run videos. Our family-owned team, established in 1957 in Marshallville, Ohio, focuses on rigorously tested, premium pre-owned OEM parts with fast, protective nationwide shipping and a standard 30-day warranty. Enthusiasts and independent shops consistently rate our service highly, with 4.8 out of 5 stars across 511+ verified reviews and frequent praise for near-new condition and fast delivery.
Tell us your VIN and goals
We'll recommend the right mix of verified used OEM and targeted new components for your build.
Conclusion
Identify the transmission with certainty using your VIN and TR code, choose a replacement that fits your budget and risk tolerance, then install with a focus on safety, alignment, and contamination control. Use a transmission jack, torque fasteners to spec, and flush the cooler lines before any fluid flows. Finish with a careful warmup, TCM relearn drive, and a methodical leak check.
If you want a rigorously inspected, video-documented transmission with clear photos and transparent condition notes, our family-owned team has supplied enthusiast-grade parts since 1957. Share your VIN and goals, and we will help you source a compatible, ready-to-install unit at a fair, competitive price with fast, protective shipping.
